Promax
GV-898

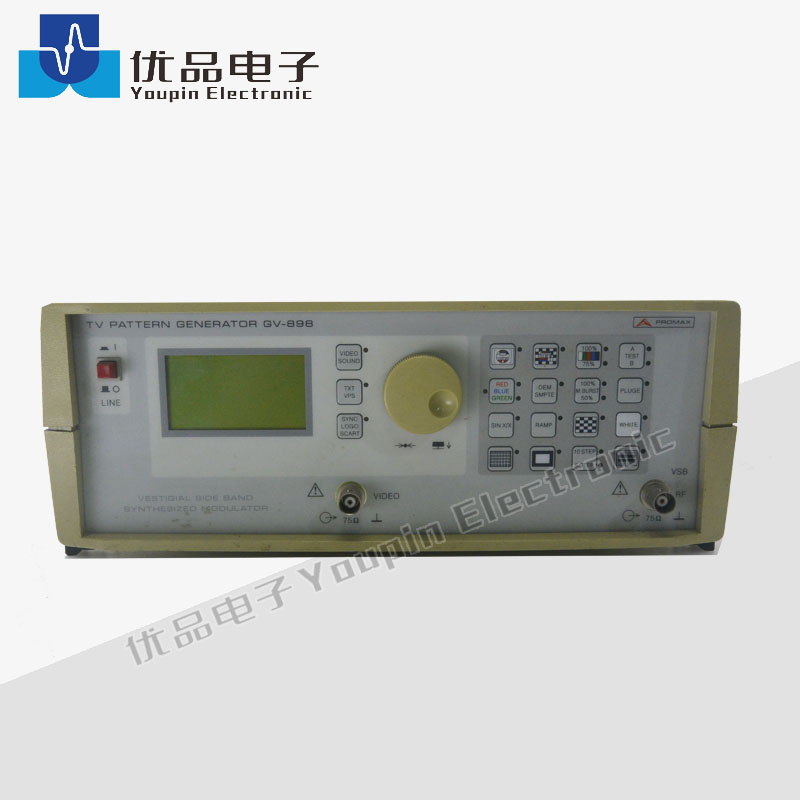

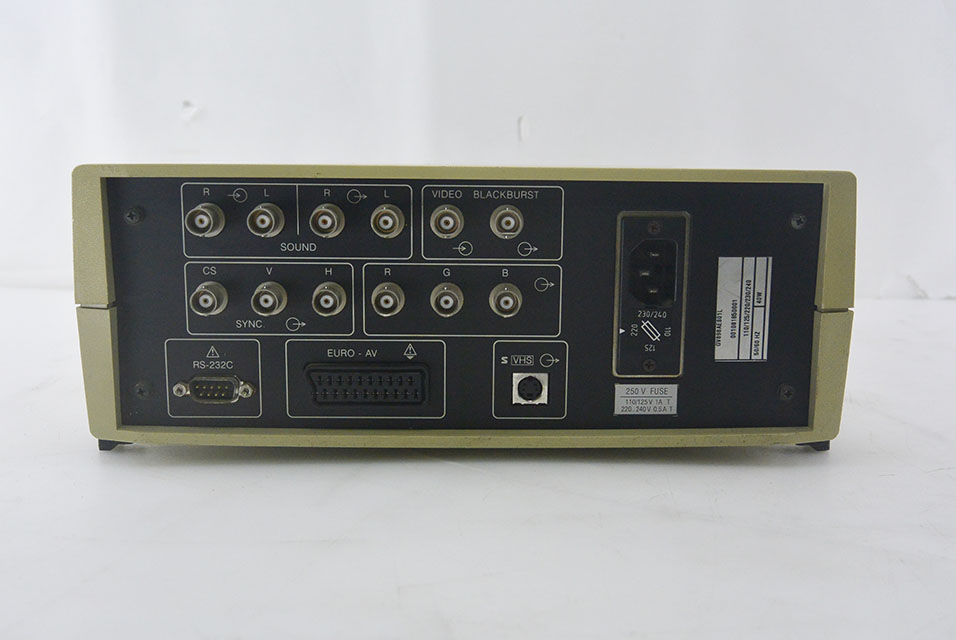

Promax GV-898 Multistandard TV Signal Generator •Color system: PAL, NTSC and SECAM •Transmission standards B,G, I, D, K, L, M, N •Composite video output: 1 Vpp (75 W) •Adjustable synthesized RF output from 32 to 900 MHz •DSB or VSB modulation, with progressive attenuation in 1 dB steps •22 test patterns 4:3 and 16:9 format •Outputs: BLACKBURST (PAL and NTSC), RGB, SCART, S/VHS, synchronisms, vertical and horizontal pulses, fixed tones at 1 kHz and 3 kHz •Inputs: left and right channels sound for Zweiton modulation, video •Selectable mono multi/standard sound. Stereo/dual Zweiton sound in B, G, D, K, M formats and NICAM sound in B, G, I, L formats •99 configuration memories •Available signals: VITS (Video Interval Test Signals), WSS (Wide Screen Signaling) in 8 formats, FLOP/TELETEXT, VPS and PDC •Remote control by RS/232
