Keysight(Agilent)
85093C
| Quantity: | |
|---|---|
•300 kHz to 9 GHz frequency range
•Fast full two-port calibration with a single connection
•Simple non-insertable device calibration
•NIST traceable accurate calibrations
•Reduced connector wear
•USB interface for direct control with PNA and ENA series of network analyzers
•eliable solid-state switching
•Mixed connector options available (3.5 mm, Type-N 50 ohm, and 7-16)
The Keysight 85093C RF electronic calibration (ECal) module makes calibration of vector network analyzers fast, easy, and accurate. ECal is a precision, single-connection calibration technique for your vector network analyzer. Performing a full two-port calibration takes less than half the time and number of connections using ECal versus mechanical cal kits. Furthermore, the accuracy of the calibration is comparable between electronic and mechanical methods. Traditional mechanical calibrations require intensive operator interaction, which is prone to errors. With ECal, the operator simply connects the ECal module to the network analyzer and the software controls the rest.
ECal modules are transfer standards capable of transferring the factory calibration accuracy to your network analyzer. The new 85093C RF electronic calibration system is now easily controlled by one of two methods depending on the network analyzer. The Keysight PNA and ENA series of network analyzers controls the module directly through a USB interface.
85093C-00F Both 3.5mm connectors are female on module
85093C-00M Both 3.5mm connectors are male on module
85093C-101 Port A connector is 3.5mm female
85093C-102 Port A connector is 3.5mm male

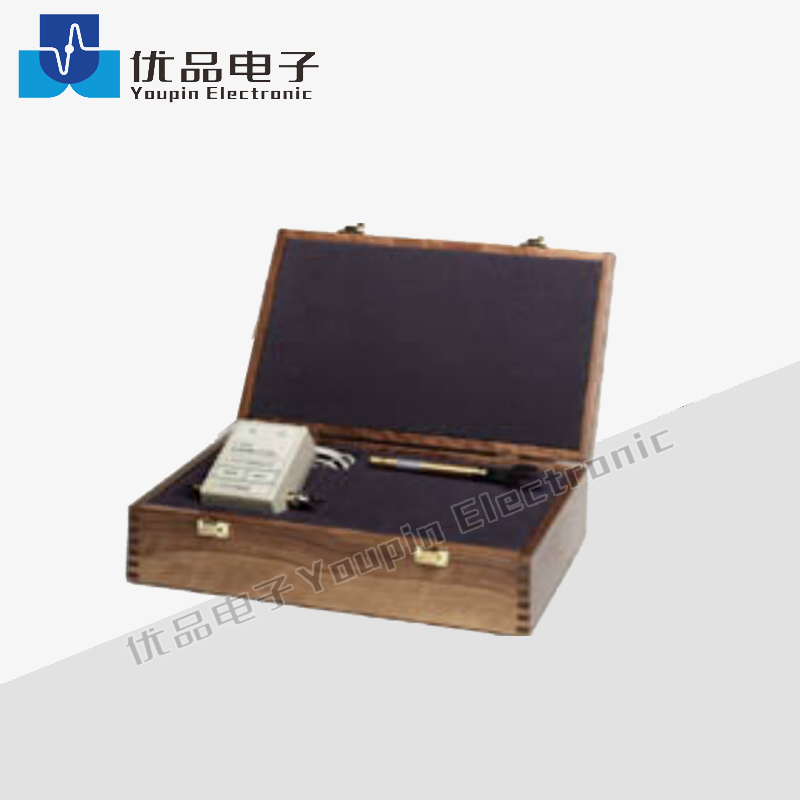

85093C-150 Wooden storage box
85093C-1A7 Calibration + Uncertainties + Guardbanding
85093C-203 Port B connector is Type-N 50-Ohm female
85093C-204 Port B connector is Type-N 50-Ohm male
85093C-205 Port B connector is 7-16 female
85093C-206 Port B connector is 7-16 male
85093C-A6J ANSI Z540-1-1994 Calibration
85093C-M0F One female and one male connector, both 3.5 mm
85093C-UK6 Commercial calibration certificate with test data
85093-00A Add 3.5 mm adapters
