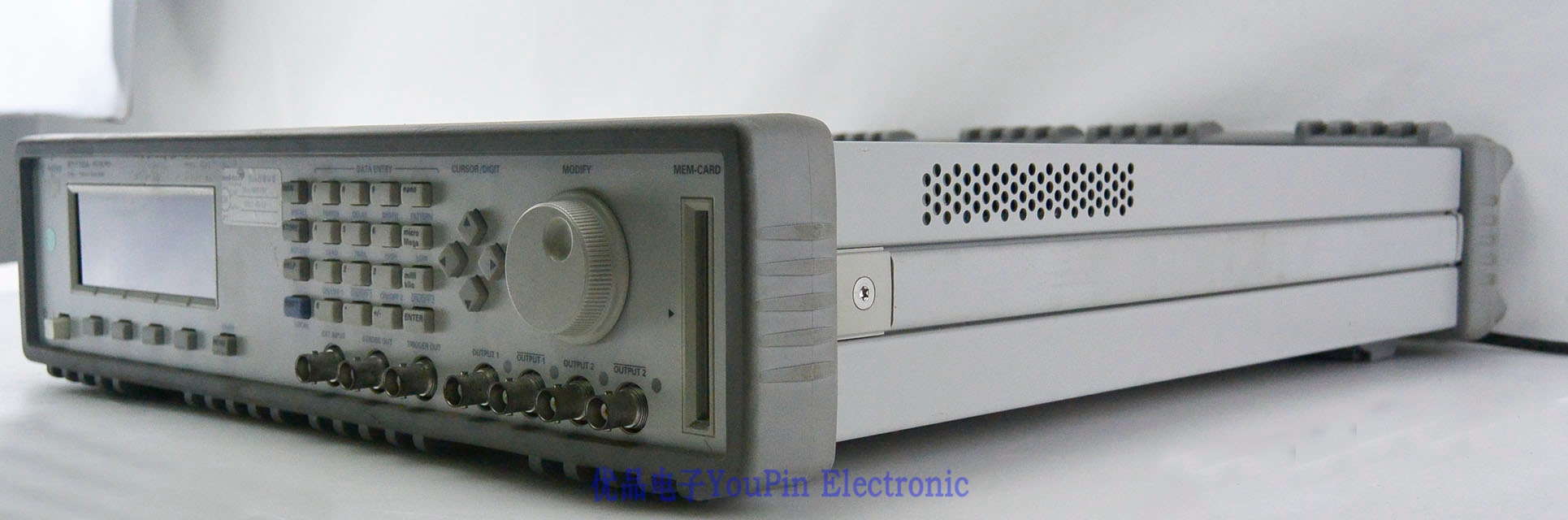

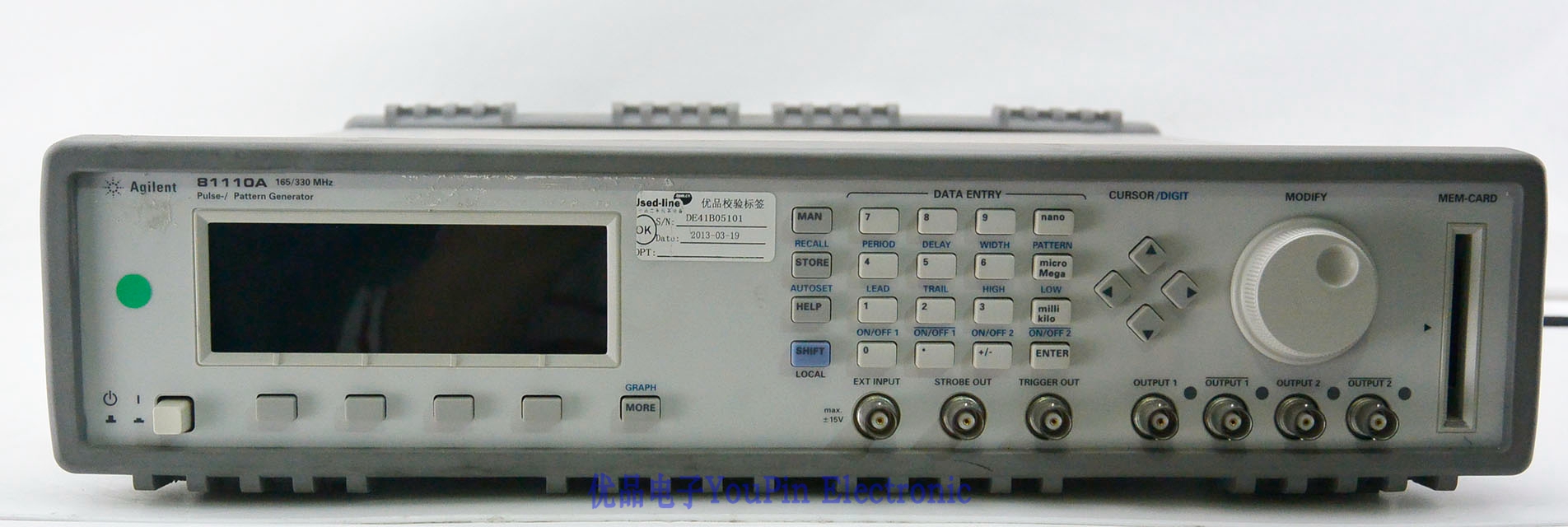

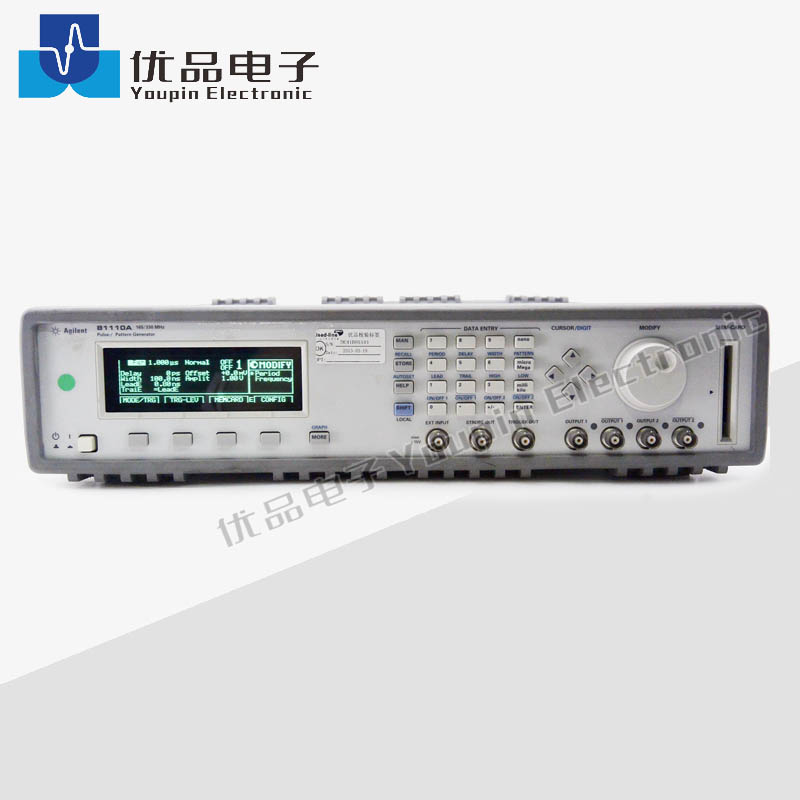

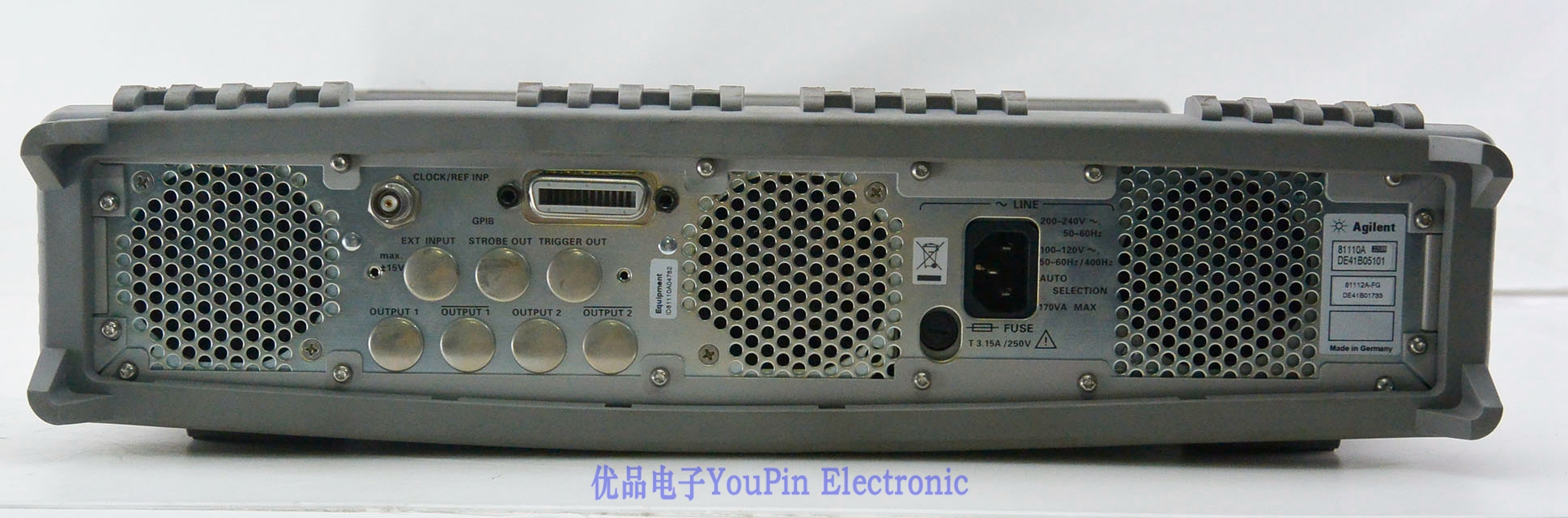

Keysight(Agilent) 81110A Pulse Pattern Generator

Brand:
Keysight(Agilent)
Code:
81110A
Item Condition: Used

•Single-/dual-channel pulse pattern generator
•165 MHz, 10 V, 50 Ω into 50 Ω (81111A) OR
•330 MHz, 3.8 V, 50 Ω into 50 Ω (81112A)
•Triggerable / PLL operation selectable
•Pulse / burst / pattern modes selectable
•Self-cal for improved timing accuracy
•BNC outputs: single-ended (81111A) // differential (81112A)

The Keysight 81110A with one or two Keysight 81111A output modules is a single/dual-channel 165 MHz Pulse Pattern Generator. In comparison to the Keysight 81104A, the 81110A offers the same performance on a wider frequency range. Delay and pulse width and repetition rate in non-PLL mode are more accurate (3% or 0.5% with self-calibration).

Alternatively, the Keysight 81110A with one or two Keysight 81112A output modules is a single/dual-channel 330 MHz Pulse Pattern Generator. Instead of variable transitions, 800 ps or 1.6 ns edges are selectable. The output impedance is 50 Ohm and provides up to 3.8 Vpp into 50 Ohm. Internal channel addition is not available.

Note: Each Keysight 81110A 165 MHz single-/dual-channel Pulse Pattern Generator requires one/two of the output channels Keysight 81111A (165 MHz, 10 V, 50 Ohm into 50 Ohm).

Each Keysight 81110A 330 MHz single-/dual-channel Pulse Pattern Generator requires one/two of the output channels Keysight 81112A (330 MHz, 3.8 V, 50 Ohm into 50 Ohm).

81111A and 81112A output channels can not be combined in one and the same 81110A!

Complementary Products
With D/MSO Oscilloscopes 6000 Series Oscilloscopes with MegaZoom III technology
With 81112A output channel(s) 500 MHz 6000 Series Oscilloscopes with MegaZoom III technology

81110A-1CM Rackmount kit
81110A-1CN Handle kit
81110A-1CP Rackmount and handle kit
81110A-1CR Rack slide kit
81110A-NOC No Output Channel
81110A-UFJ   1 MB SRAM memory card
81110A-UK6      Commercial calibration certificate with test data
81110A-UN2   Rear Panel Connectors
1CN018A   Handle Kit 88.1mm H (2U) - Two Front Handles
1CP011A   Rackmount Flange and Handle Kit 88.1mm H (2U) - Two Brackets and Front Handles
81111A-FG   10V 165 MHZ Output Channel for 81110A
81112A-FG   3.8V 330 MHz Output Channel for 81110A
81134A-PLG   Continental European power cord - ONLY FOR EU DISTR W MULT PWR CORD STANDARDS
