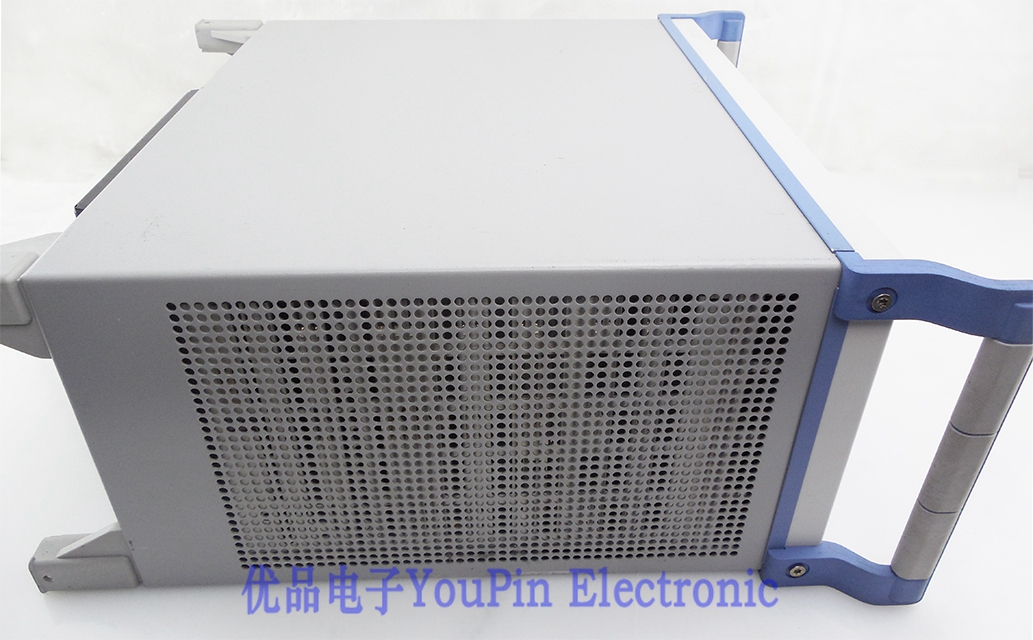

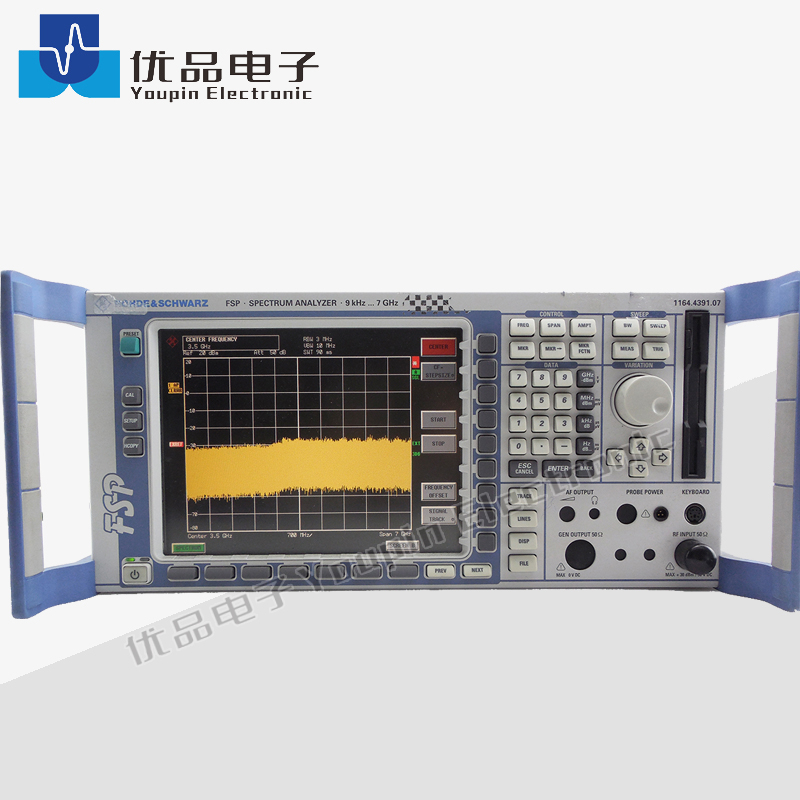

R&S FSP7 Spectrum Analyzer

  • R&S
  • FSP7
Quantity:



•Frequency range 20Hz to 7GHz
•Resolution bandwidth 1 Hz to 10 MHz
•Displayed average noise level -155 dBm (1 Hz)
•Phase-noise typ. -113 dBc/Hz @ 10 kHz offset, CF 500 MHz
•Phase-noise typ - 145 dBc/Hz @ 10 MHz offset, CF 500 MHz
•Additional filters:
Channel filters from 100 Hz to 5 MHz and RRC filters
FFT filters from 1Hz to 30 kHz
EMI bandwidths and quasi-peak detector
Total measurement uncertainty 0.5 dB
•Measurement routines for TOI, ACP(R), OBW, CCDF, APD, etc. as standard
•Fast ACP in time domain
•Up to 80 measurements per second (including trace transfer via GPIB)
•Electronic attenuator
•Application firmware available for GSM/EDGE, Bluetooth, WCDMA/HSDPA/TD-SCDMA, CDMA2000/1xEV-DV/1xEV-DO, WLAN




FSP is the ideal partner for both development and production, featuring the smallest level measurement uncertainty in its class, as well as excellent RF characteristics. The FSP is outstanding for its innovative measurement functions and incorporates proven technology with an all new hardware design to enable revolutionary performance, reliability and ease of service.
