More than 60 years of experience in the field of vector network analysis pay off: Rohde & Schwarz sets new benchmarks with its R&S®ZNB family of vector network analyzers. These analyzers feature high measurement speed, outstanding precision and exceptional ease of operation.
The R&S ZNB vector network analyzers feature a wide dynamic range of up to 140 dB (at 10 Hz IF bandwidth), low trace noise of less than 0.004 dB RMS (at 10 kHz IF bandwidth) and high output power of up to +13 dBm, which can be adjusted electronically in a range of more than 95 dB.
With frequency ranges of 9 kHz to 8.5 GHz, the new network analyzers are primarily targeted at applications in the mobile radio and electronic goods industries. The R&S ZNB is the right choice when it comes to developing, producing and servicing RF components such as amplifiers, mixers, filters and cables.
The new analyzers combine high measurement accuracy with exceptional speed – better than 10 μs per point. They feature excellent temperature and long-term stability, which ensures reliable measurements over several days without having to recalibrate the units.
These short-depth, compact two-port and four-port analyzers leave plenty of space on the workbench for the measurement application. They feature low operating noise thanks to low power consumption and a sophisticated cooling concept. The low power consumption also reduces operating costs and protects the environment.

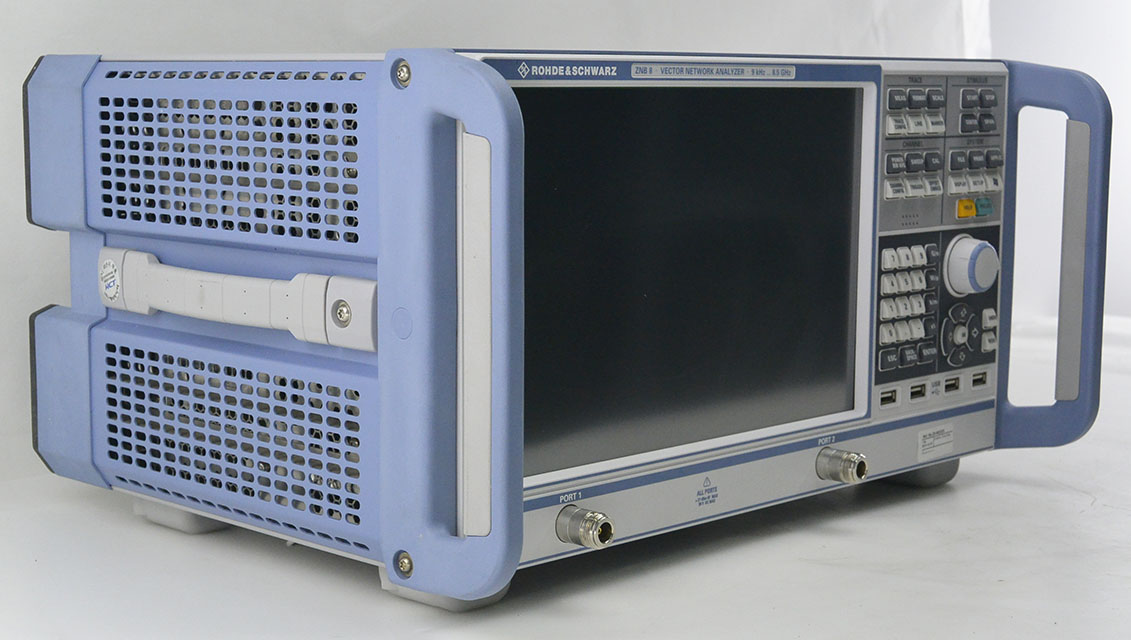

Youpin has several units of R&S ZNB8 in stock now,close to new,2 ports,8.5G.
Welcome the advice to negotiate.
