●RF, AF and level sweep (user-programmable)

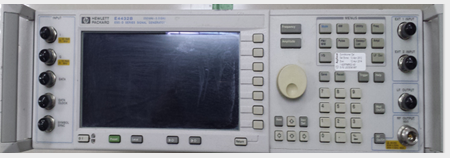

Agilent E4432B ESG-D Series Digital RF Signal Generator, 3 GHz
Key Features & Specifications
●250 kHz to 3 GHz frequency range
●RF modulation bandwidth up to 35 MHz
●Optional dual arbitrary waveform generator
and/or real-time I/Q baseband generator
●40 MHz sample rate and 14-bit I/Q resolution
●1 Msample (4 MB) memory for waveform playback and
1 Msample (4 MB) memory for waveform storage
●Custom digital modulation (>15 variations of FSK, MSK, PSK, and QAM),
AM, FM, phase modulation, pulse modulation, and step/list sweep (frequency and power)
●E443xB ESG Customer Installable Upgrades

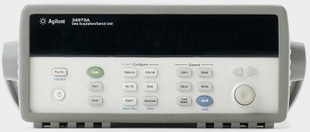

Agilent 34970A Data Acquisition / Data Logger Switch Unit
Features
●3-slot mainframe with built-in GPIB and RS232 interfaces
●6 1/2-digit (22-bit) internal DMM, scanning up to 250 channels per second
●8 switch and control plug-in modules to choose from
●Built-in signal conditioning measures thermocouples, RTDs and thermistors, ac/dc volts and current; resistance; frequency and period
●50k readings of non-volatile memory holds data when power is removed
●Hi/LO alarm limits on each channel, plus 4 TTL alarm outputs
●Free BenchLink data logger software to create tests without programming
R&S FSP7 Spectrum Analyzer FSP
FSP is the ideal partner for both development and production, featuring the smallest level measurement uncertainty in its class, as well as excellent RF characteristics. The FSP is
outstanding for its innovative measurement functions and incorporates proven technology with an all new hardware design to enable revolutionary performance, reliability and ease
of service.
●Frequency range 20Hz to 7GHz
●Resolution bandwidth 1 Hz to 10 MHz
●Displayed average noise level -155 dBm (1 Hz)
●Phase-noise typ. -113 dBc/Hz @ 10 kHz offset, CF 500 MHz
●Phase-noise typ - 145 dBc/Hz @ 10 MHz offset, CF 500 MHz
