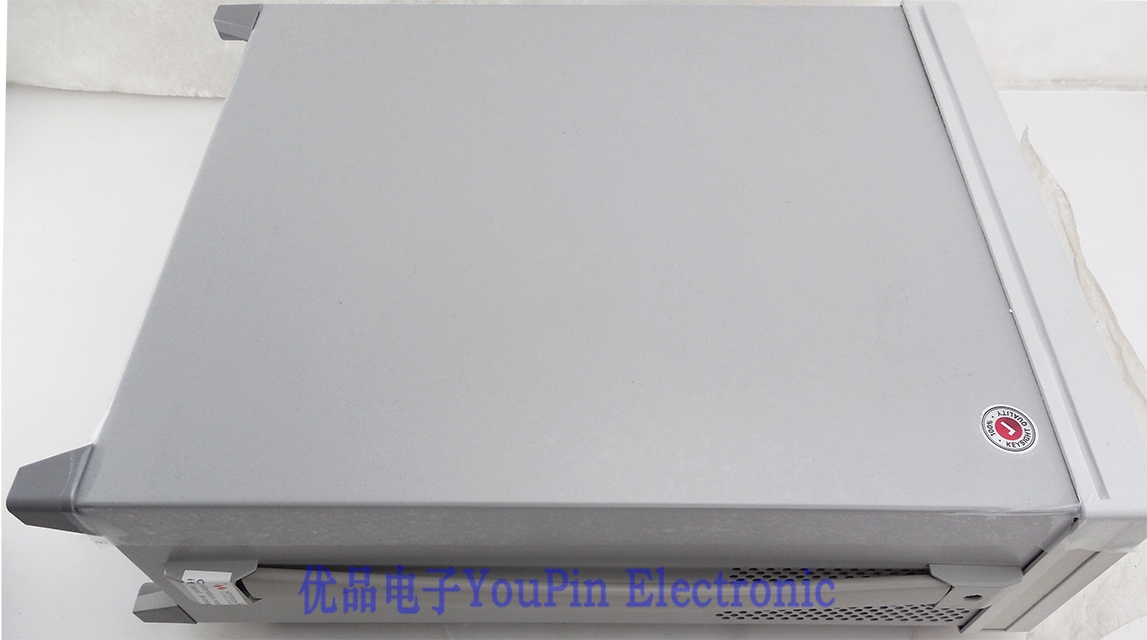

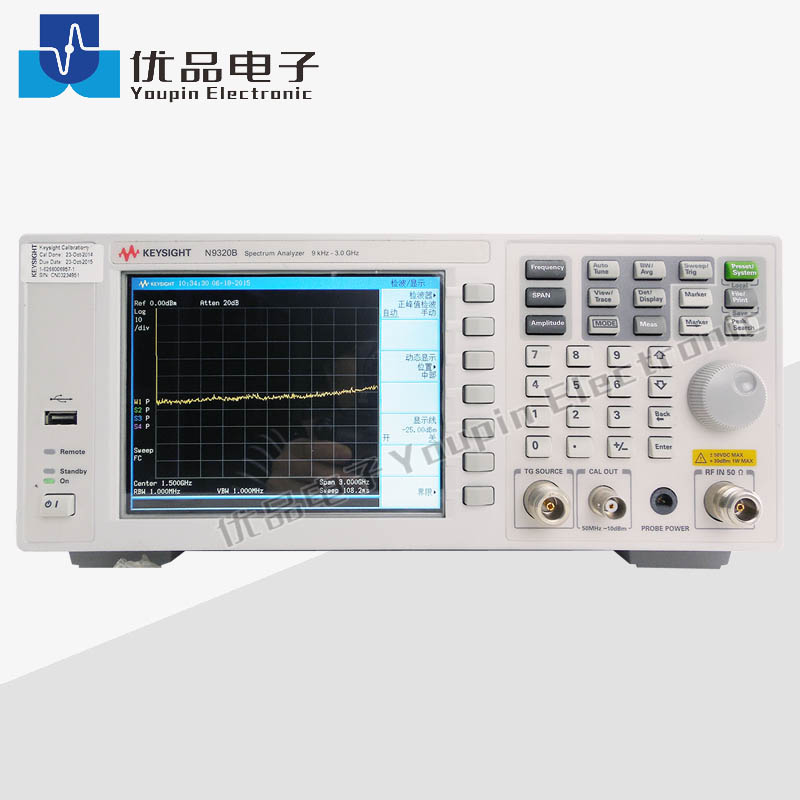

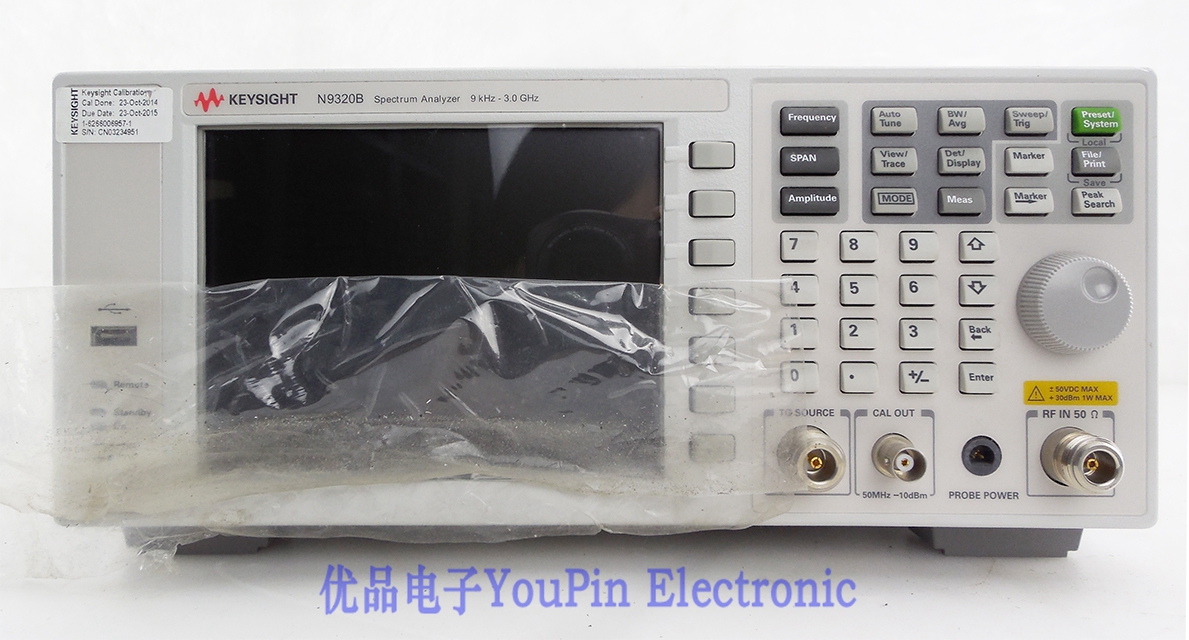

Keysight(Agilent) N9320B RF Spectrum Analyzer

Brand:
Keysight(Agilent)
Code:
N9320B
Item Condition: Used

Professional performance for spectrum analysis from 9 kHz to 3 GHz
•Minimum non-zero span sweep time: < 10 ms
•Resolving power RBW: 10 Hz to 1 MHz
•Sensitivity DANL: -130 dBm, -148 dBm with preamp on
•Overall amplitude accuracy: ±0.5 dB

Robust measurement features for characterizing your product easily
•Built-in power measurements: channel power, OBW, ACP, SEM and TOI
•Built-in power meter function with Keysight U2000 series power sensor support
•Optional tracking generator and preamplifier
•Optional AM/FM, ASK/FSK demodulation capability

Accessibility and ease-of-use at your finger tips
•Customized power-on or “preset” enabled setups
•Standard USB and LAN interface
•Multiple language graphic user interface
•Free remote control PC software

Additional information
•Keysight's PowerSuite one-button power measurements included as standard

Enhanced power measurement and easy automated test programming features
•The accuracy of frequency selective power measurements when characterizing your products is very important. With a newly featured digital IF, the N9320B provides measurement accuracy and speed you need to accomplish tasks easily
•Power meter functionality is a standard feature built-in with Keysight U2000 series power sensor support for highly accurate RF and MW power measurements
•Direct access to perform one-button power measurement functions offer channel power, ACP, OBW, SEM and TOI measurements
•For automated test programming, the N9320B provides industry standard SCPI language support and connectivity choices with USB and LAN. SCPI code compatible with Keysight ESA-L Series enables easy migration from ESA-L to the N9320B

N9320B-1CM   Rack mount kit for N9320B spectrum analyzer
N9320B-1HB Handle and Bumper
N9320B-1TC    Hard Transit Case
N9320B-AMA AM/FM demodulation metrics
N9320B-DMA   ASK/FSK demodulation metrics
N9320B-EMF     EMC Filter
N9320B-G01 GPIB Interface
N9320B-PA3 Preamplifier, 3 GHz
N9320B-PLG   Continental European power cord - ONLY FOR EU DISTR W MULT PWR CORD STANDARDS
N9320B-TG3   Tracking Generator, 3 GHz
N9320B-TR1   Training kit, RF transceiver and courseware for education lab
N9320B-UK6   Commercial calibration certificate with test data
BV0005A   BenchVue Spectrum Analyzer Pro Software License
